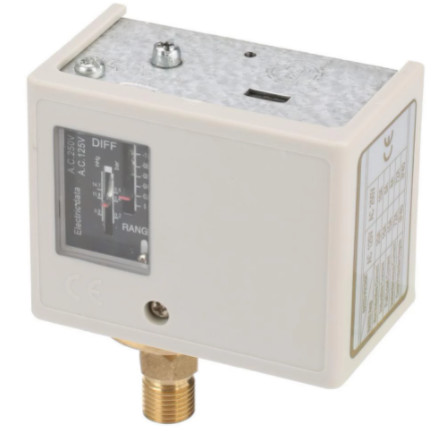

Adjustable Differential Single Pressure Switch Automatic For Water Pump
Adjustable Differential Single Pressure Switch Automatic For Water Pump
Features Gallery Product Description Request A Quote
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: PRIUS,XINYI or OEM
Model Number: HLP516
High Light:

Adjustable Differential Pressure Switch


Water Pump Single Pressure Switch

Payment & Shipping Terms
Packaging Details: bag+box+catons+pallet
Delivery Time: 10~15 working days
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 1000pcs per month
Type: HLP506
Material: Plastic+Brass
Package: Box
Colour: White
Name: Pressure Switch
Media: Air Or Liquid
Temperature Range: -10-120℃
Component: Standard Mounting Bracket
Product Description


Adjustable Differential automatic for water pump Single Pressure Switch



Pressure switches are used to control the pressure of compressor in refrigerant system, also available in air or water fluid. This series have quite stable performance with internal micro- switch structure. Standard mounting bracket are provided.




   Made of high quality material, anti-corrosion, durable in use.
   Apply for freon, air, liquid and other non-corrosive media.

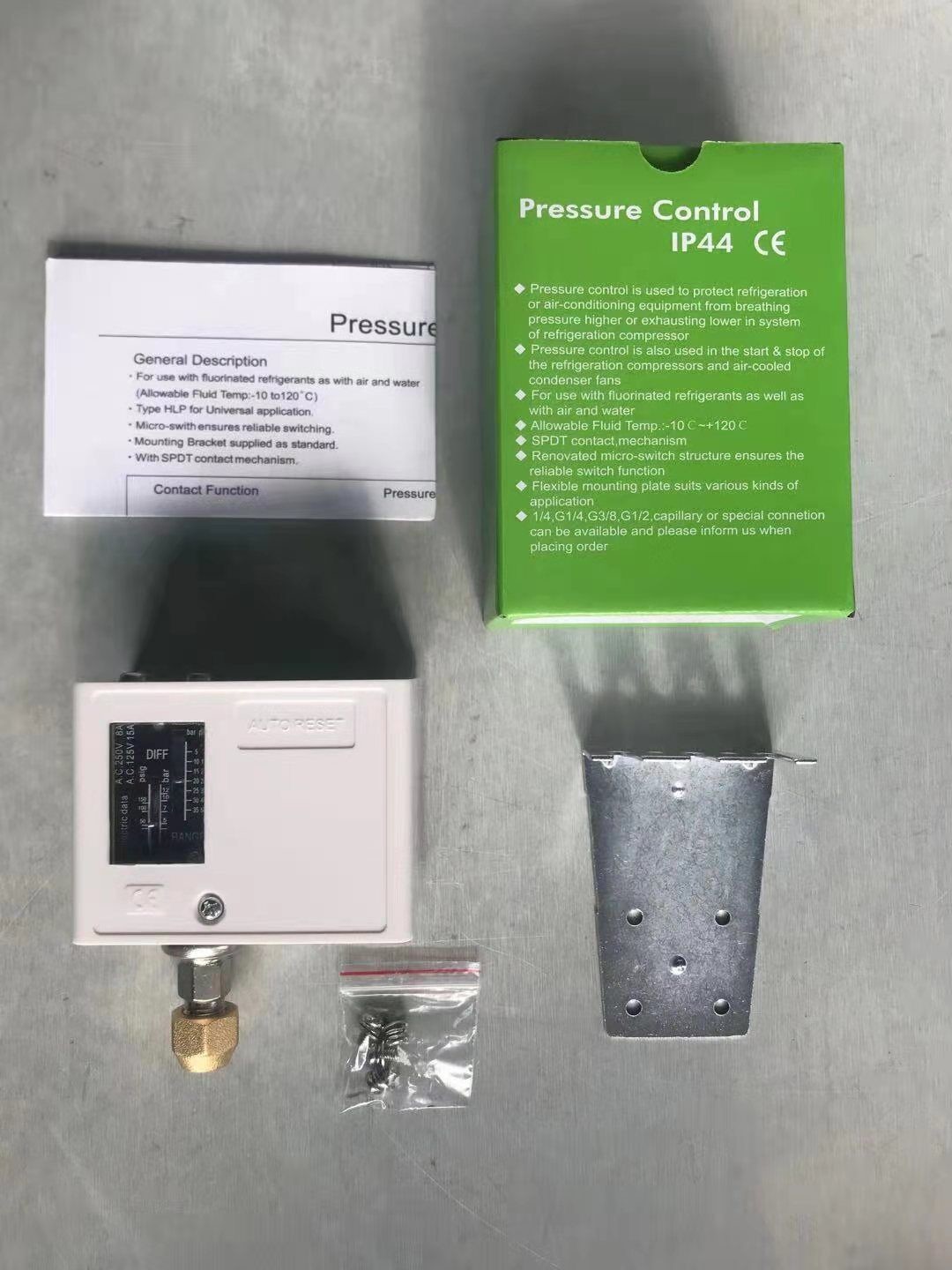

   Equipped with mounting bracket and screws, easy to install.
   The SPDT switch ensures reliable contact switching.
   Mainly used for high and low voltage limit control of refrigeration equipment or automatic system air conditioning equipment.

Quick Detail:

* Body material brass
* Housing material engineering plastic
* Bellow material brass or stainless steel for option
* Internation mounting bracket for flexible installing of different occasions
* Pressure setting can be adjustable for specific application
* Micro-switch enables reliability of switch function
* High precision window scale
* High pressure-resistance up to 35Bar
* Stable design,long service life cycle



Type Regulator Limits(Mpa) Switch Voltage Disparity Setting Up of Leaving The Factory
  Min Max Min Max Cut-off[link-up] Link -up[cut-off]
HLP110 0.1 1 0.1 0.3 0.6 0.5
HLP506 -0.07 0.6 0.06 0.4 0.3 0.2
HLP506M -0.07 0.6 Duplicate Voltage Disparity ≤0.4 0.3 Manual Restoration
HLP530 0.5 3 Fixed 0.3 to 0.5 2 1.5
HLP530D 0.5 3 0.5 1 2 1.5
HLP530M 0.5 3 Duplicate Voltage Disparity ≤0.4 2 Manual Restoration
