FAL Series Straight line type Pneumatic Vibrator with big power
Feature
Big power with lower noise
Standard frequency is from 10 to 60 times per minute
Excutation force is from 12 N to 2740 N
The frequency and vibration amplitude can be adjusted via regulating the working pressure
The normal maximum working pressure is 150 degrees centigrade
(We can also make special type,such as 200 degrees centigrade)
The pneumatic hammer can be used for severe environment
Applications
Hopper feed,Casting industry,Pipelining,Compaction,Screening,Conveyer,etc
Structure
Aluminum shell with special high grade grease,long lifetime,is suitable for different application situation
Dimensions
Technical parameters
| Type | Frequency*1000 | Vibration power(N) | Air consumption(/min) | A | C | D | E | F | |||
| Length | SW | Thread | Inlet | Outelt | |||||||
| 2bars | 6bars | 2bars | 6bars | 2bars | 6bars | mm | mm | ||||
| FAL-18 | 1.42 | 2.25 | 60 | 205 | 20 | 60 | 117 | 50 | M-10 | 1/8" | 1/8" |
| FAL-25 | 1.13 | 2.02 | 120 | 530 | 40 | 155 | 139 | 65 | M-16 | 1/4" | 1/4" |

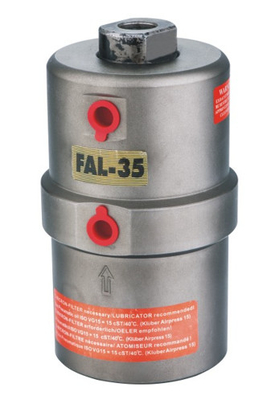

| FAL-35 | 1.24 | 2.01 | 205 | 655 | 75 | 350 | 140 | M-16 | 1/4" | 1/4" | |
