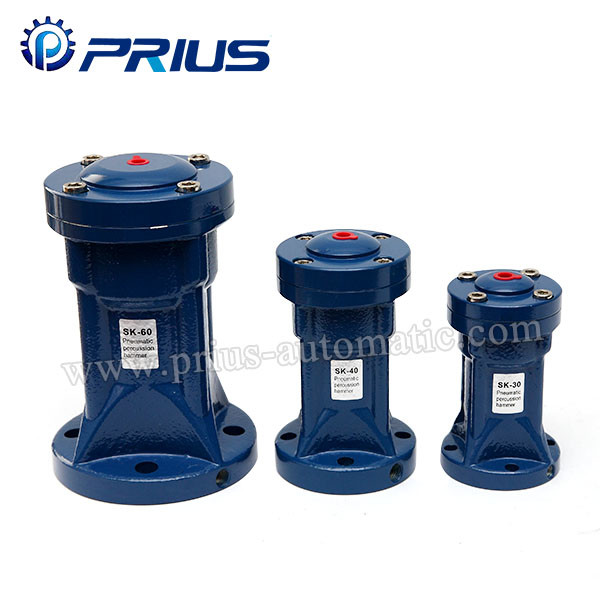

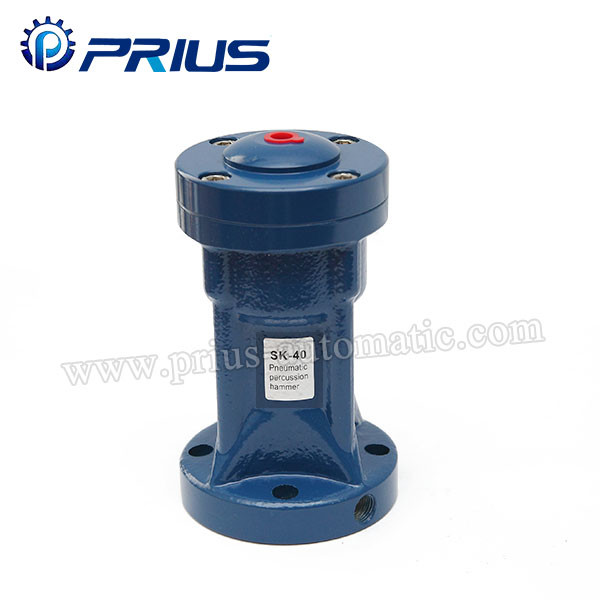

Aluminium Pneumatic Percussion Hammer Energy Saving SK Series

Aluminium Pneumatic Percussion Hammer Energy Saving SK Series

  • Aluminium Pneumatic Percussion Hammer Energy Saving SK Series
  • Aluminium Pneumatic Percussion Hammer Energy Saving SK Series
Aluminium Pneumatic Percussion Hammer Energy Saving SK Series
Product Details:
Place of Origin: Ningbo,China
Brand Name: PRIUS,XINYI or OEM
Model Number: SK
Payment & Shipping Terms:
Minimum Order Quantity: 5pcs
Price: negotiation
Packaging Details: bag+box+catons+pallet
Delivery Time: 10~15 working days
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 10000pcs per month
Contact Now
Detailed Product Description
Name: Percussion Hammer Material: Aluminium
Series: SK Port Size: 1/8" 1/4"
Frequency: 10~60times/min Max.temp: 150°C
High Light:

Aluminium Pneumatic Percussion Hammer

,

Energy Saving Pneumatic Air Vibrator

,

Energy Saving Pneumatic Percussion Hammer



SK Series Pneumatic Percussion Hammer energy - saving vibrator







Feature



The main characteristeristics air:magnetic impact of large powder falling effect;airconsumption,low operating cost

energy-saving effect is goof; percussion interval adjustable;quality,relrable,low failure rate;structure is simple,easy removal

innovative designs,chic; piston impate resistance,(can be customized explosion proor), Widely used pesticides,mining

environmental protection and other industries, is powerful powerful powerful powder processing line auxiliary equipment





  Applications



  Hopper feed,Casting industry,Pipelining,Compaction,Screening,Conveyer,etc





  Dimensions



Aluminium Pneumatic Percussion Hammer Energy Saving SK Series 0



  Technical praameters





Type A B C D E G H L S T Y R
SK-30 75 10 82 13 9 G1/8 132 68 6 50 27 G1/4
SK-40 90 12 97 18 11 G1/4 162 78 10 60 34 G1/4
SK-60 121 13 143 19 15 G1/4 215 100 10 60 48 G1/4
SK-80 160 17 170 20 17 G3/8 260 140 14 90 70 G3/8
SK-100 200 18 200 23 17 G3/8 318 160 18 90 70 G3/8







Type Operating pressure Air consumption Wallop  Weighe
  (kgf/cm²) L/pc kgm/sec kg
SK-30 3~7 0.028 ~0.75 1.1
SK-40 3~7 0.082 ~2.2 2.2
SK-60 3~7 0.228 ~7.4 5.1
SK-80 4~7 0.455 ~16.4 11.1
SK-100 5~7 1.012 ~30 37.5
