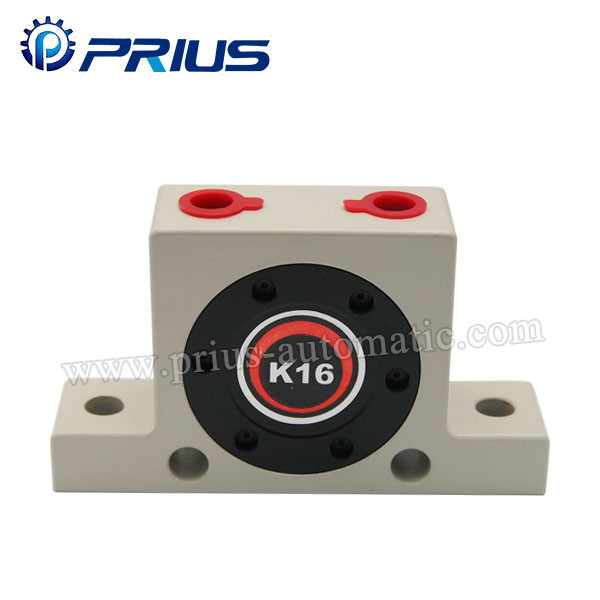

K Series Pneumatic Ball Vibrators for vibrating screening
K series pneumatic turbine vibrator with body material aluminum alloy, inlet and exhuasting port size 1/4”G or NPT,working frequency 46000cycles/Minute at 6Bar,centrifugal force 2910N at 6Ba
Quick Detail:
* K-8 Pneumatic turbine vibrator
* Body material Extruded Aluminium Alloy
* Body material stainless steel available
* Inlet and exhuasting port size 1/8”G,NPT
* Working frequence and centrifugal force can be adjustable by air pressure
* High frequence up to 46000cycles/Minute at 6 Bar
* Centrifugal force up to 2910N
* Low noise 60~75Dba
Applications:
K Pneumatic turbine vibrator used widely in feed material conveyor,vibration screening,vibrating hopper,packaging filling,foundry sand mold vibration etc
1, Extruded Aluminium Alloy Body
2, Hard Coated Aluminium Turbine Wheel
3-4, High Density Mass Positive Movement
5-7, Cavities Giving Negative Movement
8, Air Inlet Port
9, Air Exhausting port
10, Base Mounting Holes
11, Special Pre-Lubricated Matching Sealed Bearings
Hard Coated Aluminium Endplates
12, With Left direction Thread
13, With Right direction Thread
| Dimensions Table | (mm) | ||||||||
| Type | A | B | C | D | E | F | G | P/O | Weight(g) |
| K-8 | 68 | 50 | 28 | 7 | 12 | 22 | 86 | 1/4 | 150 |
| K-10 | 68 | 50 | 28 | 7 | 12 | 22 | 86 | 1/4 | 150 |
| K-13 | 90 | 65 | 39 | 9 | 16 | 27 | 113 | 1/4 | 330 |
| K-16 | 90 | 65 | 39 | 9 | 16 | 27 | 113 | 1/4 | 330 |
| K-20 | 104 | 82 | 57 | 9 | 17 | 38 | 128 | 1/4 | 690 |
| K-25 | 104 | 82 | 57 | 9 | 17 | 38 | 128 | 1/4 | 690 |
| K-32 | 130 | 103 | 76 | 11 | 21 | 50 | 160 | 3/8 | 1320 |
| K-36 | 130 | 103 | 76 | 11 | 21 | 50 | 160 | 3/8 | 1320 |
| Technical parameters | |||||||||
| Type | Frequency(V.P.M) | Vibration power(N) | Air consumption(/min) | ||||||
| 0.2Mpa | 0.4Mpa | 0.6Mpa | 0.2Mpa | 0.4Mpa | 0.6Mpa | 0.2Mpa | 0.4Mpa | 0.6Mpa | |
| K-8 | 22.500 | 27.250 | 34.100 | 245 | 465 | 700 | 90 | 150 | 190 |
| K-10 | 22.500 | 27.250 | 34.100 | 245 | 465 | 700 | 90 | 150 | 190 |
| K-13 | 13.250 | 17.500 | 19.000 | 440 | 820 | 1.200 | 100 | 190 | 270 |
| K-16 | 13.250 | 17.500 | 19.000 | 440 | 820 | 1.200 | 100 | 190 | 270 |
| K-20 | 10.000 | 12.750 | 14.111 | 950 | 1.675 | 2.000 | 150 | 270 | 400 |
| K-25 | 10.000 | 12.750 | 14.111 | 950 | 1.675 | 2.000 | 150 | 270 | 400 |
| K-32 | 7.500 | 9.350 | 11.000 | 2000 | 3.150 | 4.000 | 270 | 460 | 680 |
| K-36 | 7.500 | 9.350 | 11.000 | 2000 | 3.150 | 4.000 | 270 | 460 | 680 |
