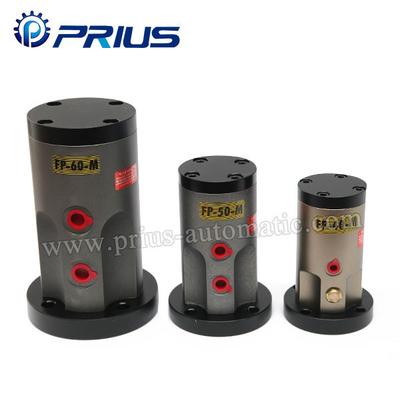

FP-M Type Low Noise Fast Start - Stop Mini Piston Pneumatic Hamm
Feature
Big power with lower noise
The frequency and vibration amplitude can be adjusted via regulating the working pressure
The pneumatic hammer can be used for severe environment
Vibration intensity can be adjusted based on air pressure,can immediately start,stop,fast,low-noise,
vibration force,security
Applications
Feed material conveyor,vibrating screening,vibrating hopper,to help fill packaging,foundry sand mold vibration
Structure
Aluminum shell with special high grade grease,long lifetime,is suitable for different application situation
Dimensions
Aluminum shell and base
Lead bronze piston
Steel spring for starting equipment
Noise reducing and exhausting system
Female thread hole for installing
| Type | Vibration power(N) | Frequency(V.P.M) | (1/min) | A | B | C | D | E | F | ||
| 3MPa | 4MPa | 6MPa | |||||||||
| FP-32-M | 480 | 710 | 900 | 10-60 | 215 | 90 | 70 | 47 | 8 | 57 | G1/8" |

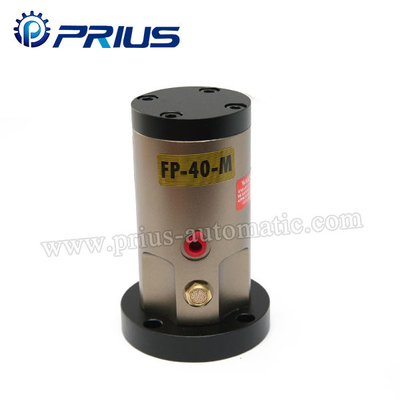

| FP-40-M | 630 | 970 | 1100 | 10-50 | 255 | 125 | 80 | 47 | 8 | 60 | G1/8" |
| FP-50-M | 710 | 1000 | 1300 | 10-40 | 275 | 139 | 94 | 54 | 10 | 68 | G1/4" |
| FP-60-M | 920 | 1200 | 1890 | 10-30 | 335 | 187 | 120 | 67 | 10 | 92 | G3/8" |
| FP-80-M | 1080 | 1920 | 2400 | 10-25 | 335 | 192 | 115 | 82 | 13 | 114 | G3/8" |
