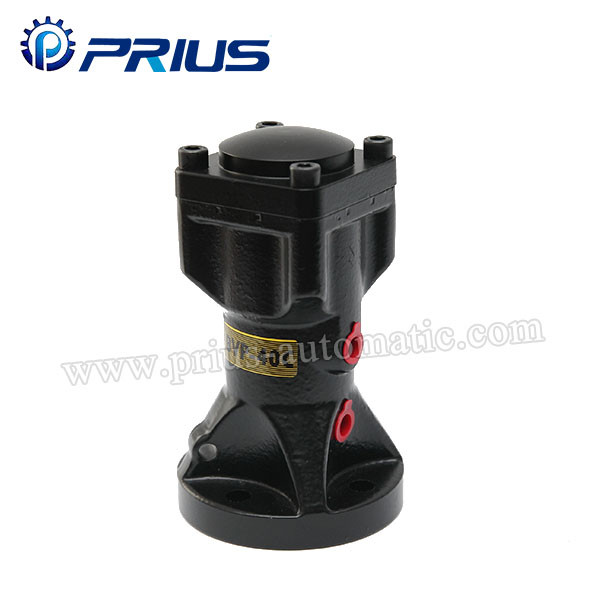

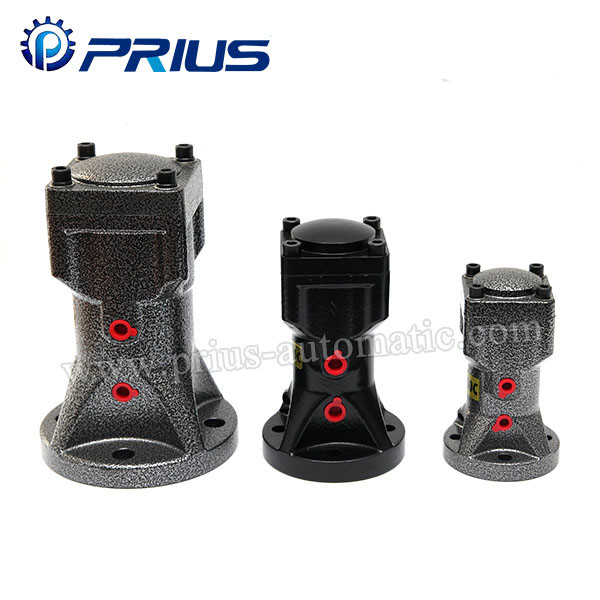

BVP Series Pneumatic Hamm Black colour Piston Vibrators
Feature
Big power with lower noise
Standard frequency is from 10 to 60 times per minute
Excutation force is from 484 N to 13800 N
The frequency and vibration amplitude can be adjusted via regulating the working pressure
Vibration intensity can be adjuster based on air pressure,can immediately start,stop,fast,low-noise,vibration force,security
Applications
Feed material conveyor,vibrating sereening,vibrating hopper,to helpfill packaging,foundry sand mold bibration
Dimensions
Technical praameters
| Type | Requency(V.P.M) | Vibration power(N) | Air consumption | Weight | ||||
| 2Mpa | 4Mpa | 6Mpa | 2Mpa | 4Mpa | 6Mpa | L/min | KG | |

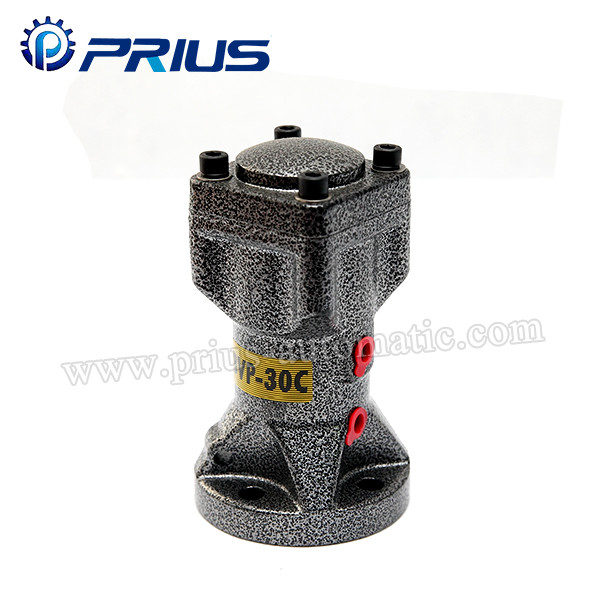

| BVP-30C | 1760 | 2300 | 2850 | 195 | 380 | 560 | 230 | 0.9 |
| BVP-40C | 1330 | 1670 | 1870 | 270 | 530 | 720 | 250 | 1.9 |
| BVP-60C | 1000 | 1220 | 1350 | 400 | 760 | 1000 | 270 | 4.5 |
| A | B | C | D | H | IN | OUT |
| 128 | 90 | 68 | 18 | 12 | 1/4" | 1/4" |
| 160 | 100 | 78 | 18 | 12 | 1/4" | 1/4" |
| 208 | 140 | 105 | 20 | 16 | 1/4" | 1/4" |
