Stainless Steel Pneumatic Components GT series Gear Turbine Vibrator
GT pneumatic turbine vibrator with body material aluminum alloy, inlet and exhuasting port size 1/8”G or NPT,working frequency 46000cycles/Minute at 6Bar,centrifugal force 2910N at 6Ba
Quick Detail:

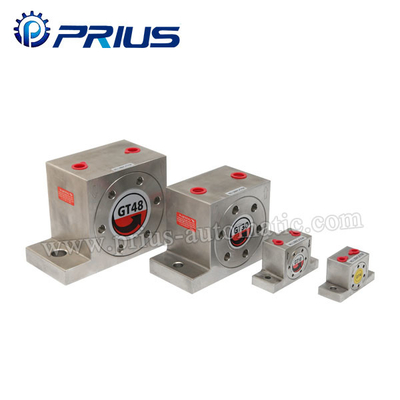

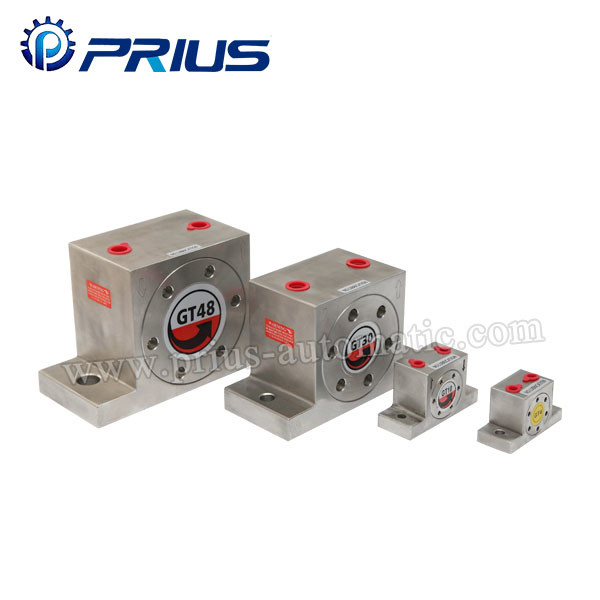

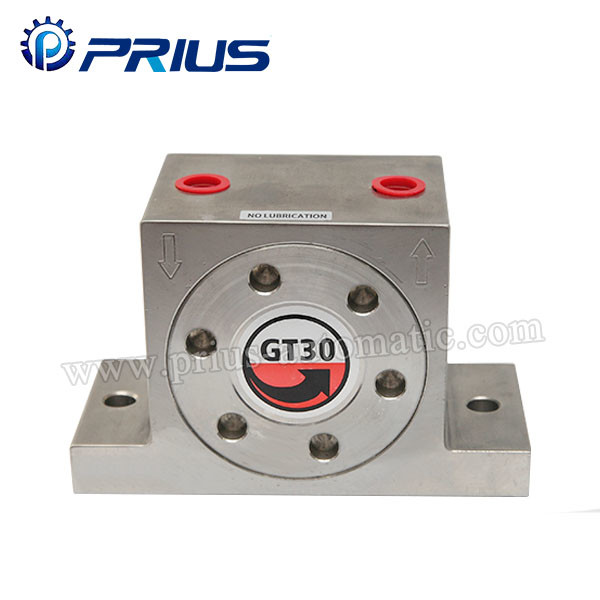

* GT-8 Pneumatic turbine vibrator
* Body material Extruded Aluminium Alloy
* Body material stainless steel available
* Inlet and exhuasting port size 1/8”G,NPT
* Working frequence and centrifugal force can be adjustable by air pressure
* High frequence up to 46000cycles/Minute at 6 Bar
* Centrifugal force up to 2910N
* Low noise 60~75Dba
* High temperature-resistance up to 120℃
* Immediately start,stop,fast response
* Easy to operate,safety application
* Easy to change bearing parts
* Lubrication free
Applications:
GT Pneumatic turbine vibrator used widely in feed material conveyor,vibration screening,vibrating hopper,packaging filling,foundry sand mold vibration etc
Dimensions Table | (mm) | ||||||||
Type | A | B | C | D | E | F | G | P/O | Weight(g) |
GT-4 | 56 | 40 | 20 | 6 | 10 | 28 | 70 | 1/8 | 280 |
GT-6 | 56 | 40 | 20 | 6 | 10 | 28 | 70 | 1/8 | 280 |
GT-8 | 68 | 50 | 28 | 7 | 12 | 35 | 86 | 1/8 | 280 |
GT-10 | 68 | 50 | 28 | 7 | 12 | 35 | 86 | 1/8 | 280 |
GT-13 | 90 | 65 | 39 | 9 | 16 | 43 | 113 | 1/4 | 610 |
GT-16 | 90 | 65 | 39 | 9 | 16 | 43 | 113 | 1/4 | 610 |
GT-20 | 104 | 82 | 56 | 9 | 17 | 56 | 128 | 1/4 | 1120 |
GT-25 | 104 | 82 | 56 | 9 | 17 | 56 | 128 | 1/4 | 1120 |
GT-32 | 130 | 103 | 76 | 11 | 21 | 73 | 160 | 3/8 | 2150 |
GT-36 | 130 | 103 | 76 | 11 | 21 | 73 | 160 | 3/8 | 2150 |
GT-40 | 152 | 122 | 85 | 18 | 27 | 80 | 194 | 3/8 | 3530 |
GT-48 | 152 | 122 | 85 | 18 | 27 | 80 | 194 | 3/8 | 3530 |
GT-60 | 195 | 140 | 96 | 21 | 30 | 95 | 240 | 1/2 | 5590 |
1, Extruded Aluminium Alloy Body
2, Hard Coated Aluminium Turbine Wheel
3-4, High Density Mass Positive Movement
5-7, Cavities Giving Negative Movement
8, Air Inlet Port
9, Air Exhausting port
10, Base Mounting Holes
11, Special Pre-Lubricated Matching Sealed Bearings
Hard Coated Aluminium Endplates
12, With Left direction Thread
13, With Right direction Thread
Dimensions Table | (mm) | ||||||||
Type | A | B | C | D | E | F | G | P/O | Weight(g) |
GT-4 | 56 | 40 | 20 | 6 | 10 | 28 | 70 | 1/8 | 280 |
GT-6 | 56 | 40 | 20 | 6 | 10 | 28 | 70 | 1/8 | 280 |
GT-8 | 68 | 50 | 28 | 7 | 12 | 35 | 86 | 1/8 | 280 |
GT-10 | 68 | 50 | 28 | 7 | 12 | 35 | 86 | 1/8 | 280 |
GT-13 | 90 | 65 | 39 | 9 | 16 | 43 | 113 | 1/4 | 610 |
GT-16 | 90 | 65 | 39 | 9 | 16 | 43 | 113 | 1/4 | 610 |
GT-20 | 104 | 82 | 56 | 9 | 17 | 56 | 128 | 1/4 | 1120 |
GT-25 | 104 | 82 | 56 | 9 | 17 | 56 | 128 | 1/4 | 1120 |
GT-32 | 130 | 103 | 76 | 11 | 21 | 73 | 160 | 3/8 | 2150 |
GT-36 | 130 | 103 | 76 | 11 | 21 | 73 | 160 | 3/8 | 2150 |
GT-40 | 152 | 122 | 85 | 18 | 27 | 80 | 194 | 3/8 | 3530 |
GT-48 | 152 | 122 | 85 | 18 | 27 | 80 | 194 | 3/8 | 3530 |
GT-60 | 195 | 140 | 96 | 21 | 30 | 95 | 240 | 1/2 | 5590 |
