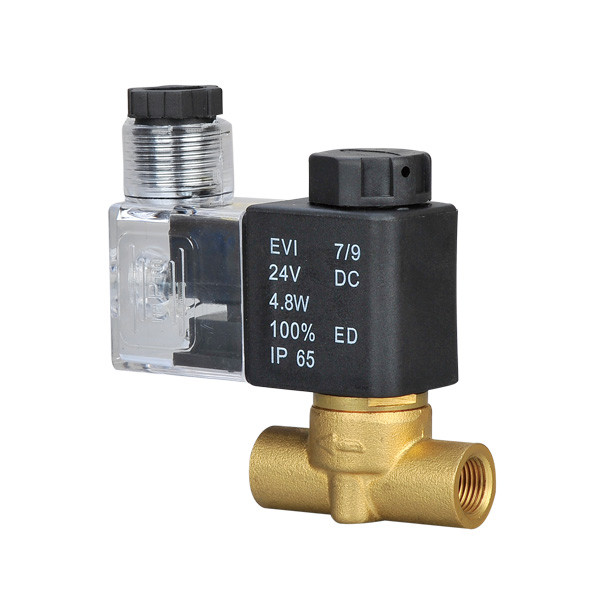

XTF Small Copper Two Way Solenoid Valve , DC12V / DC24V Straight Brass Solenoid Valve

XTF Small Copper Two Way Solenoid Valve , DC12V / DC24V Straight Brass Solenoid Valve

    • XTF Small Copper Two Way Solenoid Valve , DC12V / DC24V Straight Brass Solenoid Valve
  • XTF Small Copper Two Way Solenoid Valve , DC12V / DC24V Straight Brass Solenoid Valve

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: PRIUS,XINYI or OEM
    Model Number: XTF

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: negotiation
    Packaging Details: bag+box+catons+pallet
    Delivery Time: 10~15 working days
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 5000pcs per month
    Contact Now
    Detailed Product Description
    Name: Copper Valve Working Medium: Air/oxygen/rare Gases
    Max Pressure: 0.4Mpa Pressure Range: 0~0.35Mpa
    Temperature Range: -5~60℃ Port Size: G1/4"
    Net Weight: 0.4kg/pcs Voltage: DC12V,DC24V
    Class Of Insulation: F Class Cv: 0.89
    High Light:

    Pneumatic Air Valve

    ,

    Pneumatic Poppet Valve

    XTF Small Copper Two Way Solenoid Valve , DC12V / DC24V Straight Brass Solenoid Valve





    .

    Specifiction



    1. The normal use of more than 10 million times.



    2. Using import coil, low power consumption.



    3. Quick response, good appearance



    Port Size M5 G1/8″
    Body Material Brass
    Control Model Direct Drive
    Sealing Principle Soft Nature
    Installation M3
    Weight 163g
    Operating Pressure 0~10bar
    Working Medium Air : -10~60℃ Water : 1~60℃ Oil : -5~60℃
    Rated Voltage DC12V DC24V AC110V AC220V
    Allow Voltage Fluctuation Range ±10%
    Shortest Excitation Time 0.05S





    Internal Structure Parts



    NO. Designation Material Amount
    1 Iron Nut QC235 1
    2 Gasket QC235 1
    3 Coil Assembly   1
    4 Guide Head Assembly   1
    5 Valve Body Brass 1



    XTF Small Copper Two Way Solenoid Valve , DC12V / DC24V Straight Brass Solenoid Valve 0





    Overall Dimension



    XTF Small Copper Two Way Solenoid Valve , DC12V / DC24V Straight Brass Solenoid Valve 1
