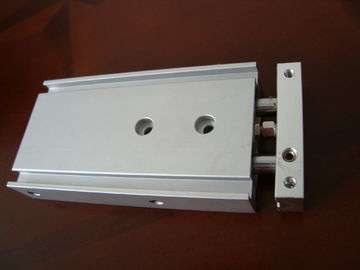

CXSM Dual Rod Air Cylinder Double , Slide Bearing Double Rod End Cylinder Without Switch

5pcs
MOQ
negotiation
Price
CXSM Dual Rod Air Cylinder Double , Slide Bearing Double Rod End Cylinder Without Switch
Features Gallery Product Description Request A Quote
Features
Specifications
Name: Double Rod End Air Cylinder
Pressure: 10.50Kgf/cm²
Temperature Range: 0-70℃
Speed Range: 50~400mm/s
Working Medium: Air
Bore Size: 6~32mm
High Light:

Double Rod Pneumatic Cylinder

,

Double Rod Air Cylinder

,

Dual Rod Pneumatic Air Cylinder

Basic Infomation
Place of Origin: Ningbo,China
Brand Name: PRIUS,XINYI or OEM
Model Number: CXSM
Payment & Shipping Terms
Packaging Details: bag+box+catons+pallet
Delivery Time: 10~15 working days
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 20000pcs per month
Product Description



CXSM Dual Rod Air Cylinder Double , Slide Bearing Double Rod End Cylinder Without Switch







Good performance in distortion-resistance,twisting-resistance SMC type CXSM Guided rod double shaft double acting Pneumatic air cylinder Bore size 6mm-32mm e.g. CXSM-20-50 with magnet and rubber buffer





Quick Detail:



* CXSM Double rod air cylinder with Guided rod plate SMC interchange

* High precision make sure linear moving excellently

* Good performance in distortion-resistance, twisting-resistance

* With slot on cylinder for mounting sensors

* Design to bear side load performance

* Multi-position mounting hole easily for installation.

* With magnet and rubber cushion both ends

* Sliding bearing and ball guide bearing available for option

* Piston rod #45(ASTM-1045) steel chrome-plated

* Stainless steel piston rod is available

* With self-lubricating bearing,lubrication free

* Bore size 6mm 10mm,16mm,20mm,25mm,32mm





Specifiction



Bore size(mm) 6 10 16 20 25 32
working Medium Filtered compressed air
Motion Pattern Double action
Pressure Endurance 1.05MPa
Operating pressure range 0.15~7MPa 0.1~7MPa 0.05~0.7MPa
Ambient Temperature 5~60ºC
Buffer cushioning Both ends rubber buffer
Bearing type Sliding bearing or Ball guide bearing for option
Adjustable stroke 0~5mm
None-Rotation Precision(Slide bearing) ±0.1° ±0.15° ±0.13° ±0.11° ±0.1° ±0.08°
None-Rotation Precision (Ball guide bearing) ±0.1° ±0.1° ±0.07° ±0.06° ±0.05° ±0.04°
Port size M5X0.8 M5X0.8 M5X0.8 M5X0.8 M5X0.8 G1/8





Ordering Code



CXS M 20 50
CXS:Standard double shaft with magnet type Bearing type Bore Size Stroke:0~100mm
M:Sliding bearing type 6:6mm
10:10mm
16:16mm
L:Ball guide bearing type 20:20mm
25:25mm
32:32mm





Overall Dimension







Model A B C D E F G H I J K L M N NN O OO P
CXS□10 46 17 44 15 7.5 2-M4×0.7 35 20 4 8 9 20 2-Φ3.4through 2-M3×0.5 Φ6 5 M4×0.7×14.5L 33.6
2-Φ6.5 thread depth 5
Counterbore depth3.3
CXS□15 58 20 56 18 9 2-M5×0.8 45 25 5 10 9 30 2-Φ4.3through 2-M4×0.7 Φ8 6 M4×0.7×14.5L 48
2-Φ8 thread depth 6
Counterbore depth4.4
CXS□20 64 25 62 23 11.5 2-M5×0.8 50 28 6 12 12 30 2-Φ5.5through 2-M4×0.7 Φ10 8 M6×1.0×18.5L 53
2-Φ9.5 thread depth 6
Counterbore depth5.3
CXS□25 80 30 78 28 14 2-M6×1.0 60 35 6 12 12 30 2-Φ6.9through 2-M5×0.8 Φ12 10 M6×1.0×18.5L 64
2-Φ11 thread depth 7.5
Counterbore depth6.3
CXS□32 98 38 96 36 18 2-M6×1.0 75 44 8 16 14 30 2-Φ6.9through 2-M5×0.8 Φ16 13 M8×12.5×23L 76
2-Φ11 thread depth 8
Counterbore depth6.3



Model PP Q QQ R RR T TT U UU V W X Y
CXS□10 M4×0.7 8.5 7 30 7 - 5 8 4-M5×0.8 4-M3×0.5 2-M4×0.7 M3×0.5×10L M3×0.5×5L
thread depth 4.5 thread depth 4.5 thread depth 7
CXS□15 M4×0.7 10 10 38.5 10 - 5 8 4-M5×0.8 4-M4×0.7 2-M5×0.8 M5×0.8×10L M4×0.7×4L
thread depth 4.5 thread depth 5 thread depth 8
CXS□20 M6×1.0 7.75 12.5 45 7.75 9.5 6.5 8 4-M5×0.8 8-M4×0.7 2-M6×1.0 M6×1.0×12L M5×0.8×5L
thread depth 4.5 thread depth 6 thread depth 10
CXS□25 M6×1.0 8.5 15 46 15 13 9 9 2004-1-8 8-M5×0.8 2-M8×1.25 M6×1.0×14L M6×1.0×5L
thread depth 6.5 thread depth 7.5 thread depth 12
CXS□32 M8×1.25 9 19 56 19 20 11.5 10 2004-1-8 8-M5×0.8 2-M8×1.25 M8×1.25×16L M8×1.25×8L
thread depth 6.5 thread depth 7.5 thread depth 12



Model S SS Z ZZ Model S SS Z ZZ
CXS□10-10 10 65 30 82 CXS□15-10 10 70 25 89
CXS□10-20 20 75 92 CXS□15-20 20 80 99
CXS□10-30 30 85 40 102 CXS□15-30 30 90 35 109
CXS□10-40 40 95 112 CXS□15-40 40 100 119
CXS□10-50 50 105 122 CXS□15-50 50 110 129
Model S SS Z ZZ CXS□20-40 40 110 40 134
CXS□20-10 10 80 30 104 CXS□20-50 50 120 144
CXS□20-20 20 90 114 CXS□20-75 75 145 60 169
CXS□20-30 30 100 40 124 CXS□20-100 100 170 194
Model S SS Z ZZ Model S SS Z ZZ
CXS□25-10 10 82 30 106 CXS□32-10 10 92 40 122
CXS□25-20 20 95 116 CXS□32-20 20 102 132
CXS□25-30 30 102 40 126 CXS□32-30 30 112 50 142
CXS□25-40 40 112 136 CXS□32-40 40 122 152
CXS□25-50 50 122 146 CXS□32-50 50 132 162
CXS□25-75 75 147 60 171 CXS□32-75 75 157 70 187
CXS□25-100 100 172 196 CXS□32-100 0 182 212



CXSM Dual Rod Air Cylinder Double , Slide Bearing Double Rod End Cylinder Without Switch 0CXSM Dual Rod Air Cylinder Double , Slide Bearing Double Rod End Cylinder Without Switch 1CXSM Dual Rod Air Cylinder Double , Slide Bearing Double Rod End Cylinder Without Switch 2CXSM Dual Rod Air Cylinder Double , Slide Bearing Double Rod End Cylinder Without Switch 3
