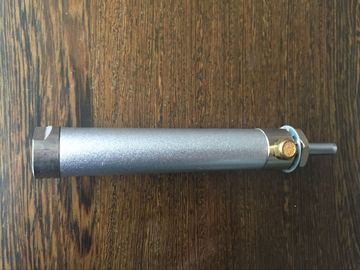

MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars

MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars

    • MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars
    • MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars
    • MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars
    • MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars
    • MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars
  • MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: PRIUS,XINYI or OEM
    Model Number: MAL

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiation
    Packaging Details: bag+box+catons+pallet
    Delivery Time: 10~15 working days
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 20000pcs per month
    Contact Now
    Detailed Product Description
    Material: Aluminum Working Medium: Air
    Max Pressure: 13.50Kgf/cm² Temperature Range: 0-70℃
    Thread: With Muffer
    High Light:

    Micro Pneumatic Cylinder

    ,

    Micro Air Cylinder



    Mini Pneumatic Cylinder Aluminum Alloy tube with special design for Volkswagen cars



    MA standard stainless steel mini double acting Pneumatic air cylinder Bore size 16mm-40mm



    Quick Detail:



    * ISO 6432 standard mini pneumatic air cylinder

    * With magnet,air buffer adjustable or rubber cushion for choice

    * Stainless steel barrel,Aluminum tube can be optional

    * Piston rod #45(ASTM-1045) steel chrome-plated

    * Stainless steel piston rod is available

    * With guide plate type available

    * With self-lubricating bearing,lubrication free

    * Bore size 8mm, 10mm,12mm,16mm,20mm,25mm,32mm,40mm,50mm,63mm

    * Cylinder kits and accessories available





    Specifiction

    MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars 0



    MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars 1


    Stroke



    Bore(mm) Standard Stroke   Max.Stroke Permissible Stroke

    16 25 50 75 80 100 125 160 175 200     300 500
    20 25 50 75 80 100 125 160 175 200 250 300   500 650
    25 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 500 650
    32 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 500 650
    40 25 50 75 80 100 125 160 175 200 250 300 350 400 450 500 500 650





    Overall Dimension



    MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars 2MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars 3MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars 4MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars 5MA Standard Mini Pneumatic Cylinder Aluminum Alloy Tube For Volkswagen Cars 6
