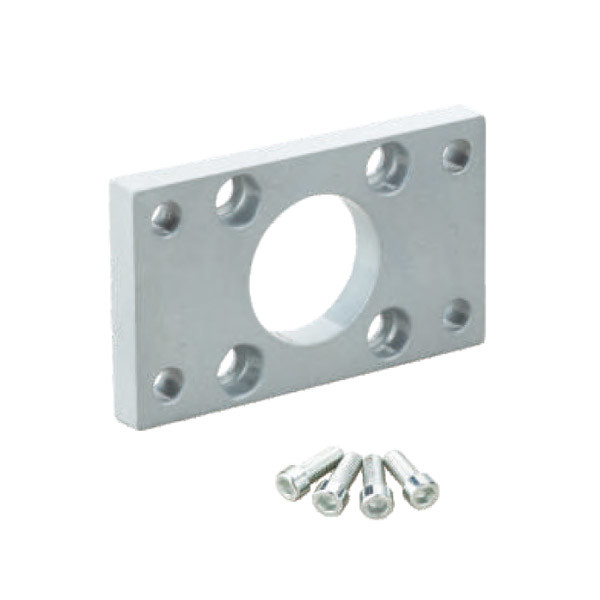

FA / FB Pneumatic Cylinder Accessories , Gray Cylinder Mounting Accessories Flange

FA / FB Pneumatic Cylinder Accessories , Gray Cylinder Mounting Accessories Flange

    • FA / FB Pneumatic Cylinder Accessories , Gray Cylinder Mounting Accessories Flange
  • FA / FB Pneumatic Cylinder Accessories , Gray Cylinder Mounting Accessories Flange

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: PRIUS,XINYI or OEM
    Model Number: ISO- FA/FB

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiation
    Packaging Details: bag+box+catons+pallet
    Delivery Time: 10~15 working days
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 20000pcs per month
    Contact Now
    Detailed Product Description
    Product Name: ISO FA/FB Material: Aliminum
    Working Pressure: 1-9.0Kgf/cm² Pressure: 13.50Kgf/cm²
    Temperature Range: 0-70℃ Speed Range: 50~800mm/s
    Fix Type: Normal/LB/FA/FB/SDB Action Type: Single Acting/Double Acting
    High Light:

    Cylinder Piston Rod

    ,

    Cylinder Mounting Accessories

    FA / FB ISO Cylinder Accessories Flange Gray colour Aluminum Alloy spray paint





    Specification



      32 40 50 63 80 100 125 160 200
    Bore


    AJ 11 11 14 14 17 17 19 25 25

    AK 7 7 9 9 11 11 13 17 17

    BA 30.5 35.5 40.5 45.5 45.5 55.5 60.5 65.5 75.5

    BB 10 10 12 12 16 16 20 20 25

    BC 47 53 65 75 95 115 140 180 220

    BD 32 36 45 50 63 75 90 115 135

    BE 80 90 110 125 154 186 224 280 320

    BF 64 72 90 100 126 150 180 230 270

    BH 4 4 4 6 6 6 8 8 12

    BP 7 9 9 9 12.5 14.5 16.5 18.5 24

    T 32.5 38 46.5 56.5 72 89 110 140 175



    FA / FB Pneumatic Cylinder Accessories , Gray Cylinder Mounting Accessories Flange 0FA / FB Pneumatic Cylinder Accessories , Gray Cylinder Mounting Accessories Flange 1
