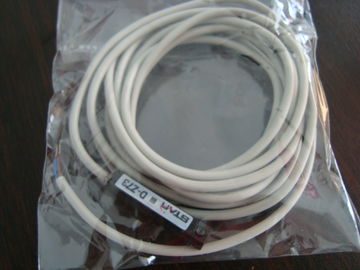

Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch

Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch

    • Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch
    • Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch
  • Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: PRIUS,XINYI or OEM
    Model Number: XYC-31

    Payment & Shipping Terms:

    Minimum Order Quantity: 5pcs
    Price: negotiation
    Packaging Details: bag+box+catons+pallet
    Delivery Time: 10~15 working days
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 20000pcs per month
    Contact Now
    Detailed Product Description
    Material: Plastic Name: Magnetic Sensor Switch
    Working Pressure: 1-9.0Kgf/cm² Pressure: 13.50Kgf/cm²
    Temperature Range: 0-70℃ Speed Range: 50~800mm/s
    Buffer Type: Gasket Buffer/Adjustable Buffer Port Size: M5X0.8/G1/8"
    High Light:

    Pneumatic Cylinder Accessories

    ,

    Cylinder Mounting Accessories



    XYC - 31 Series Magnetism Switch for Groove type cylinder with protection







    Specification



    Model XYC-31R   XYC-31N XYC-31P
    Connect Diagram
    Characteristics

    Wiring Method 2-Wire Type   3-Wire Type

    Switching Logic SPST Nomally Open   Solid State Output, Normally Open

    Sensor Type Reed Switch   NPN Current Sinking PNP Current Sourcing

    Operating Voltage 5~240V DC/AC   5~30V DC

    Max. Switching Current 100mA max.   200mA max.

    Contact Rating 10W max.   6W max.

    Current Consumption -     15mA @ 24V DC max.

    Voltage Drop 3.5V max.   1.5V max.

    Leakage Current -     0.01 mA max.

    Indicator LED / Red LED   LED / Red LED LED / Green LED

    Cable Ф3.0,2C,PUR   Ф3.0,3C,PUR

    Max. Operating Frequency 200HZ   1000HZ

    Temperature Range       -10~70℃

    Shock 30G   50G

    Vibration       9G

    Enclosure Classification       IEC 529 IP67 (NEMA 6)

    Protection Circuit -     With Protection





    Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch 0Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch 1Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch 2





    Overall Dimension



    Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch 3



    Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch 4



    Magnetic Reed Switch For Groove Type Cylinder , XYC - 31 Magnetic Micro Switch 5
