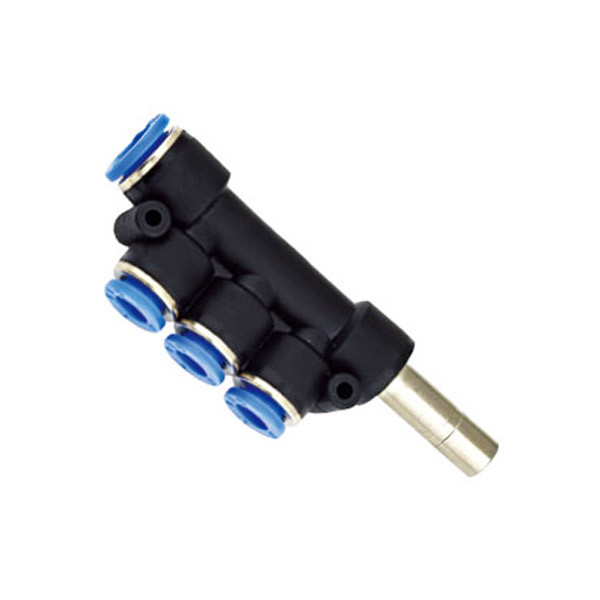

PKJ

PKJ

    • PKJ
  • PKJ

    Product Details:

    Place of Origin: Ningbo,China
    Brand Name: PRIUS,XINYI or OEM
    Model Number: PL

    Payment & Shipping Terms:

    Minimum Order Quantity: 50pcs
    Price: negotiation
    Packaging Details: bag+box+catons+pallet
    Delivery Time: 10~15 working days
    Payment Terms: T/T, L/C, Western Union,Paypal
    Supply Ability: 200000pcs per month
    Contact Now
    Detailed Product Description
    Material: Brass Nickel Plate+Plastic Working Medium: Air,Vacuum
    Colour: Black/White Pressure: 0~10.20Kgf/cm²
    Temperature Range: 0-60℃ Max Pressure: 10.20Kgf/cm²
    Tube Material: Pu,nylon,polyurethane Name: Pneumatic Air Fitting
    Port Size: M5~1/2" Thread: G/NPT/R
    High Light:

    Pneumatic Air Fittings

    ,

    Plastic Air Fittings

    One Touch Push-in Elbow Pneumatic Tube Fitting Nickel Plate Black Colour







    One touch quick push-in fitting straight,elbow,tee,branch tee,plug,splicer,triple,banjo,reduction type,flow regulating type,swivel type,stop type,check type,bulkhead type,tube size 4mm~16mm,inch size 5/32”~1/2”,thread 1/8”~1/2” PT,G,NPT,Metric thread,brass nickle plated body material e.g PC8-G02





    Quick Detail:





    * One touch quick push-in fitting

    * Body material brass nickle plated

    * Housing material PBT,white colour and black colour selectable

    * Lock claw material stainless steel,tight and stable

    * Round and oval sleeve for option,colour in black and blue selectable

    * Fast installation,easy and flexible connecting,saving space

    * Diversfied model satisfy any need of piping work

    * Teflon leak proof coated on thread to ensure good sealing peformance

    * Threads available in G,PT,NPT,METRIC

    * Tube size available metric 4,6,8,10,12,16 inch 5/32,3/16,1/4,5/16,3/8,1/2

    * Ttraight,tee,branch tee,run tee,elbow,universal elbow(Banjo),plug,splicer,reduction,flow regulator,swivel type,triple type,thread extended type,bulkhead type,check type,stop type



    Fluid Type Air, Vacuum
    Operating Pressure 0~10.2kgf/cm2(0~1.0MPa)
    Negative Pressure -750mmHg(10Torr)
    Max. Pressure 15.3kgf/cm2(1.5MPa)
    Operating Temperature Range 0~60℃
    Tube Material

    Nylon and Polyurethane



    Tube Outer DIA

      Metric Size Inch Size
    Code 4 6 8 10 12 16 5/32 3/16 1/4 5/16 3/8 1/2
    Dia. Φ4 Φ6 Φ8 Φ10 Φ12 Φ16 Φ5/32 Φ3/16 Φ1/4 Φ5/16 Φ3/8 Φ1/2



    Thread Type & Size

    Code M5 M6 M8 M10 M12 M12A M14 M16 M20
    Dia. 4mm 6mm 8mm 10mm 12mm 14mm 16mm 1/8inch 5/32inch



      55º Taper Pipe Thread (PT) G - Thread
    Code 1 2 3 4 6 G01 G02 G03 G04 G06
    Dia. R1/8 R1/4 R3/8 R1/2 R3/4 R1/8 R1/4 R3/8 R1/2 R3/4



      UNF NPT1/8
    Code U10 N01 N02 N03 N04 N06
    Size 10-32UNF NPT1/8 NPT1/4 NPT3/8 NPT1/2 NPT3/4



    PKJ 0
