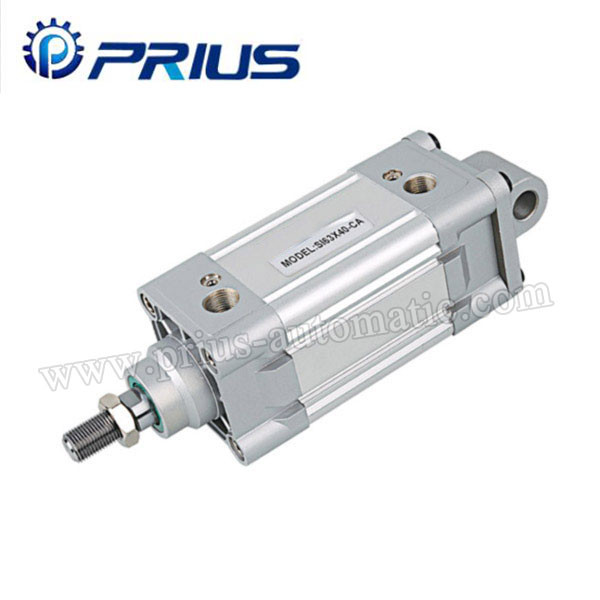

DNC Mickey Bore Pneumatic Air Cylinder Double Acting With Bore 32 - 125mm
ISO15552 standard square DNC double acting Pneumatic air cylinder Bore size 32mm-125mm e.g. DNC40-50-PPV-A with magnet and adjustable air buffer Festo crossover
Quick Detail:
* ISO 6431/ISO15552 VDMA 24562 standard Pneumatic air cylinder
* With slot on cylinder for mounting sensors,sensor model no.CS1-M
* With magnet and adjustable air buffer cushioning
* Square barrel standard ,Economical mickey mouse barrel available
* Piston rod #45(ASTM-1045) steel chrome-plated ,Stainless steel(SS304) piston rod is available
* With self-lubricating bearing,lubrication free
* Bore size 32mm,40mm,50mm,63mm,80mm,100mm,125mm
* Cylinder kits,repair kits and accessories available
* long service life more than 5000KM
Order Code
DNC - 63 x 50 -25 一 S - LB- FK - MT
|
Magnet Code |
|
Rod End Fitting Type
Blank:Basic type I·lfitting y.y fitting FH:Bearing fiting FK:Floating fittinç
Sensor
XYC-31R magnetism switch
|
|
|
Fixed Type
Blank:Basic type LB:Front &back fixed type FA:Front cover fixed type (Front flange type) FB:Back cover fixed type (Back flange type) CA:Back cover fixed type (Single earring) CB:Back cover fixed type (Double earring) SDB:Back cover fixed type TC:Central trunnion type |
|||
| Tube Type |
Blank:Without Magnet
|
||
|
Blank:Square Type T:Tie-rod Type M:Mickey Mouse Type |
|||
|
Adjust Storke |
|||
|
25:25mm 50:50mm 75:75mm |
|||
| Series code | |||
|

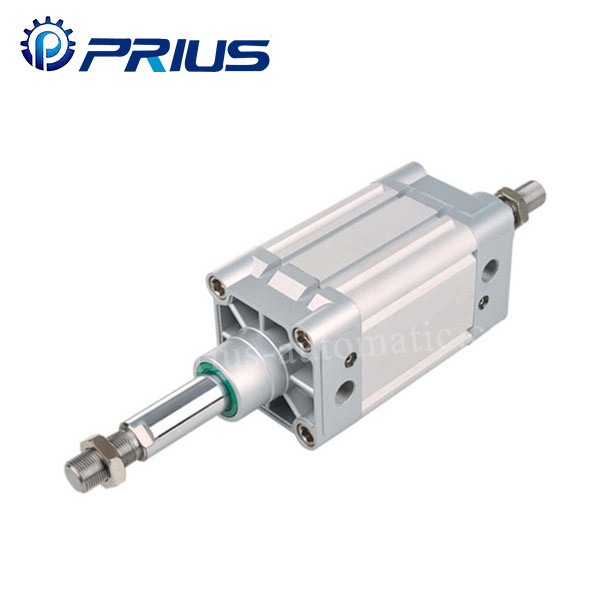

DNC:ISO15552 Standard Double Action Type DNCD:ISO15552 Standard Double-shaft, Double Acting DNCJ:ISO15552 Double-shaft With Adjustable Stroke |
|||
Specifiction
| Bore (mm) | 32 | 40 | 50 | 63 | 80 | 100 | 125 |
| Motion Pattern | Double Action | ||||||
| Working Medium | Fitered Air | ||||||
| Compression Pressure | 1.5MPa | ||||||
| Max. Operating Pressure | 1.0MPa | ||||||
| Min. Operating Pressure | 0.1MPa | ||||||
| Buffer | Air Buffer(Standard) | ||||||
| Condition Temperature | (5)~70℃ | ||||||
| Operating Speed | 50~800mm/s | ||||||
| Port Size | G1/8″ | G1/4″ | G3/8" | G1/2" | |||
Stroke
| Bore | Standard Stroke | Buffer Stroke | Stoke Range |
| 32 | 25 50 80 100 125 160 200 250 320 400 500 | 20 | 10~2000 |
| 40 | |||
| 50 | 22 | ||
| 63 | |||
| 80 | 32 | ||
| 100 | |||
| 125 | 35 |
Internal Structure
Parts
| NO. | Designation | NO. | Designation |
| 1 | Piston Rod Nut | 10 | Magnet (Optional) |
| 2 | Piston Rod | 11 | Wear Ring |
| 3 | Front Cover Seal Ring | 12 | Barrel |
| 4 | Bearing | 13 | Piston |
| 5 | Front Cover | 14 | Buffer Seal |
| 6 | Buffering O-ring | 15 | Buffer Needle |
| 7 | O-ring | 16 | Back Over |
| 8 | Pistion rod O-ring | 17 | Hex Socket Screw |
| 9 | Piston O-ring | 18 | Profile Bolt |
Overall Dimension
Dimension Sheet
| Bore / Symbol | A | A1 | A2 | B | C | D | E | F | G | H | I | J | K | L | |
| 32 | 142 | 190 | 185 | 16 | 94 | 30 | 33 | 10 | 25 | 22 | 17 | 6 | M10x1.25 | M6 | |
| 40 | 159 | 213 | 207 | 20 | 105 | 35 | 34 | 10 | 29.5 | 24 | 17 | 7 | M12x1.25 | M6 | |
| 50 | 175 | 244 | 233 | 27 | 106 | 40 | 42.5 | 10 | 32 | 32 | 23 | 8 | M16x1.5 | M8 | |
| 63 | 190 | 258 | 247 | 26 | 122 | 45 | 42 | 10 | 36 | 32 | 23 | 8 | M16x1.5 | M8 | |
| 80 | 214 | 301 | 288 | 35 | 127 | 45 | 53 | 10 | 37 | 40 | 26 | 10 | M20x1.5 | M10 | |
| 100 | 229 | 321 | 308 | 40 | 137 | 55 | 52 | 10 | 39 | 40 | 26 | 10 | M20x1.5 | M10 | |
| 125 | 277 | 394 | 378 | 46 | 160 | 60 | 71 | 10 | 43.5 | 54 | 40 | 10 | M27x2 | M12 | |
| Bore / Symbol | M | N | O | P | Q | R | S | T | U | V | W | X | Y | Z | Z1 |
| 32 | 12 | 15 | G1/8 | 5 | 3 | 6.5 | 45 | 32.5 | 12 | 10 | 28 | 4 | 46 | 58.7 | 21 |
| 40 | 12 | 17.5 | G1/4 | 7 | 3 | 7 | 52 | 38 | 16 | 13 | 33 | 4 | 53.7 | 68 | 21 |
| 50 | 12 | 20 | G1/4 | 7 | 3 | 9 | 65 | 46.5 | 20 | 17 | 38 | 4 | 65.8 | 84.5 | 23 |
| 63 | 12 | 22 | G3/8 | 8 | 5 | 9 | 76 | 56.5 | 20 | 17 | 38 | 4 | 79.9 | 99.6 | 23 |
| 80 | 15 | 23 | G3/8 | 10 | 5 | 12 | 94 | 72 | 25 | 22 | 43.5 | 5 | 101.8 | 123.8 | 29 |
| 100 | 15 | 26 | G1/2 | 10 | 5 | 14 | 112 | 89 | 25 | 22 | 47 | 6 | 125.9 | 148.9 | 29 |
| 125 | 20 | 29 | G1/2 | 10 | 5 | 14 | 134 | 110 | 32 | 27 | 53 | 7 | 156.9 | 179.6 | 40.5 |
