MVSC Series Die - Casting Solenoid Air Valve , F Class High Pressure Solenoid Valve
20pcs
MOQ
negotiation
Price
MVSC Series Die - Casting Solenoid Air Valve , F Class High Pressure Solenoid Valve
Features Gallery Product Description Request A Quote
Features
Basic Infomation
Place of Origin: Ningbo,China
Brand Name: PRIUS,XINYI or OEM
Model Number: MVSC
High Light:

Pneumatic Air Valve

,

Pneumatic Poppet Valve
Payment & Shipping Terms
Packaging Details: bag+box+catons+pallet
Delivery Time: 10~15 working days
Payment Terms: T/T, L/C, Western Union,Paypal
Supply Ability: 5000pcs per month
Specifications
Name: Solenoid Air Valve
Working Medium: Air
Temperature Range: 5~50℃
Body: Die Casting
Power Consumption: AC:6/4.9VA DC:2.5W
Voltage: AC/DC
Class Of Insulation: F Class
Port: G3/8"
Product Description

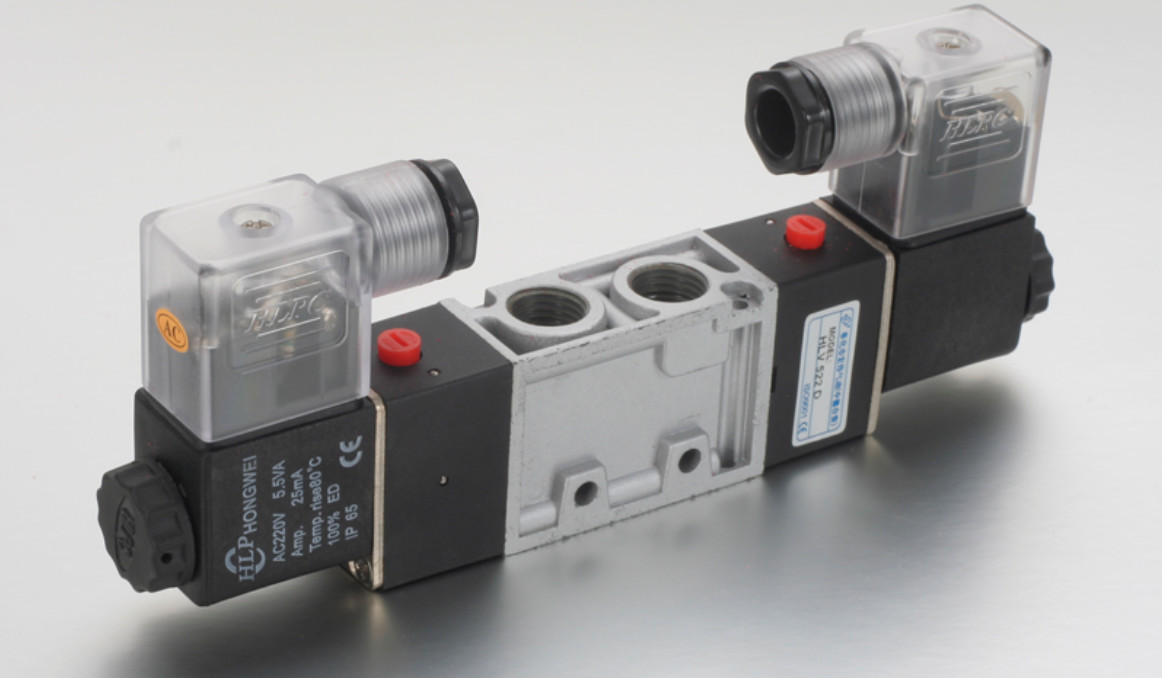

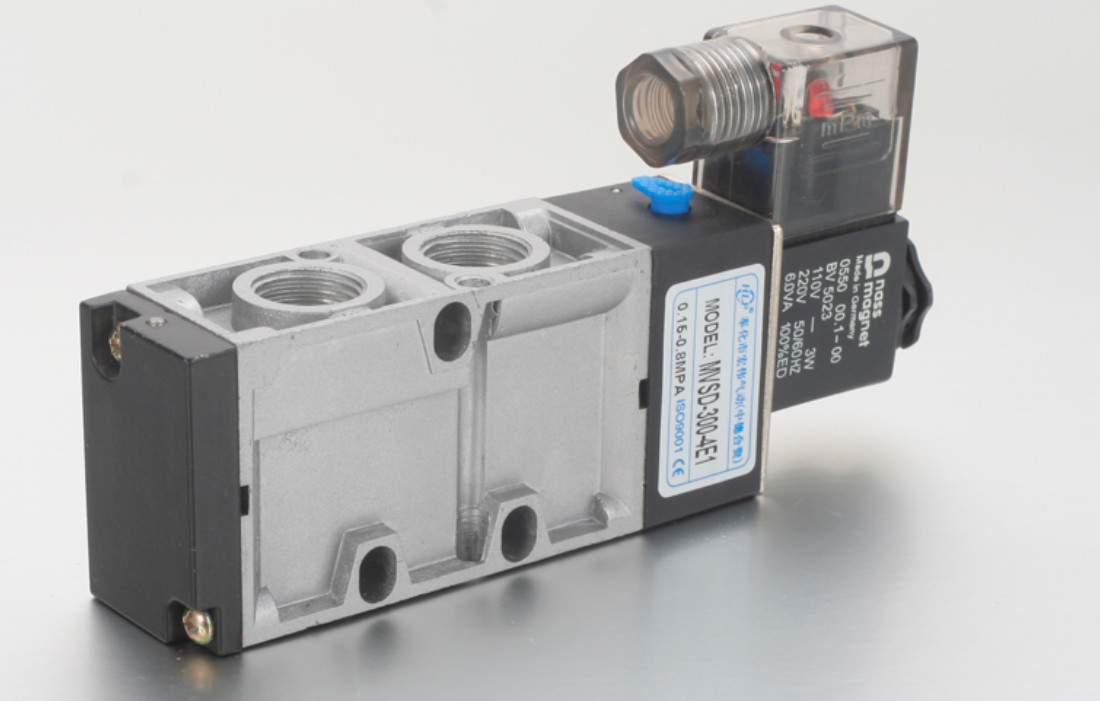

MVSC series Die-casting valve body Solenoid Valve , F class for air





Quick Detail:


* MVSC series Spacer sleeve solenoid valve
* Aluminum material Body width 18mm,22mm,27mm,34mm
* Pilot Operated,Inner Pilot type
* With Spacer Sleeve design,effectively reduce the O-ring seal friction during motion, long service life up to 30000000 cycles
* With dust-Proof function
*Plastic Sleeve or Aluminum Sleeve for option

*High Acuracy Sleeve machining ensure smooth motion

Applications:



MVSC Spacer sleeve solenoid valve used as directional control equipment to change the direction of working medium to drive a linear actuator in Pneumatic automation system





Specifiction



MVSC Series Die - Casting Solenoid Air Valve , F Class High Pressure Solenoid Valve 0





Ordering Code



MVSC Series Die - Casting Solenoid Air Valve , F Class High Pressure Solenoid Valve 1





Overall Dimension



MVSC Series Die - Casting Solenoid Air Valve , F Class High Pressure Solenoid Valve 2MVSC Series Die - Casting Solenoid Air Valve , F Class High Pressure Solenoid Valve 3MVSC Series Die - Casting Solenoid Air Valve , F Class High Pressure Solenoid Valve 4MVSC Series Die - Casting Solenoid Air Valve , F Class High Pressure Solenoid Valve 5
