Place of Origin: | Ningbo,China |
Brand Name: | PRIUS,XINYI or OEM |
Model Number: | N/M |
Minimum Order Quantity: | 5pcs |
---|---|
Price: | negotiation |
Packaging Details: | bag+box+catons+pallet |
Delivery Time: | 10~15 working days |
Payment Terms: | T/T, L/C, Western Union,Paypal |
Supply Ability: | 20000pcs per month |
Name: | Micro Air Cylinder | Material: | Stainless Steel |
---|---|---|---|
Heads: | Two/three | Shape: | Square |
Used On: | Sock Knitting Machinery | Action Type: | Single Acting |
High Light: | Small Pneumatic Cylinder,Micro Pneumatic Cylinder,Three Heads Mini Air Cylinder |

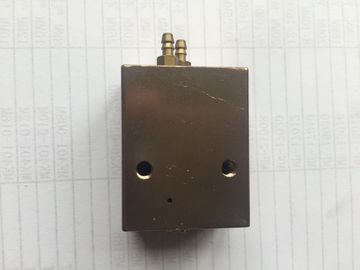

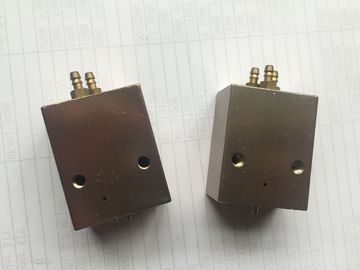

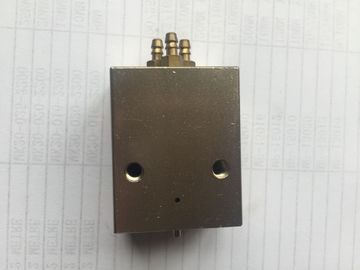

Two or Three Heads Mini Size Cylinder Square Body used on Sock Knitting Machinery
NO. | Designation | Material | NO. | Designation | Material |
1 | Rod Nut | Carbon Steel | 10 | Barrel(Without) | Hard anodized aluminum |
2 | Cover Nut | Carbon Steel | 11 | Piston Rod(Without) | S45C Hard chrome carbon steel |
3 | Front Cover Seal | NBR | 12 | Piston Seal | NBR |
4 | Front Cover | Aluminum Alloy | 13 | Piston | Aluminum Alloy |
5 | O-ring | NBR | 14 | Wear Ring | PA66 |
6 | Adjustable Screw | 15 | Magnet (Optional) | RbFeb | |
7 | Self Lubricating bearing | PTFE+Brass | 16 | Hex Socket Screw | Carbon Steel |
8 | Cushion Seal | NBR | 17 | Back Over | Aluminum Alloy |
9 | Cover O-ring | NBR |
