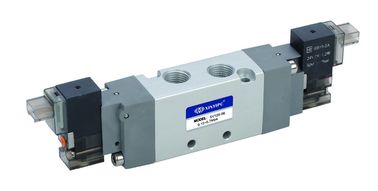

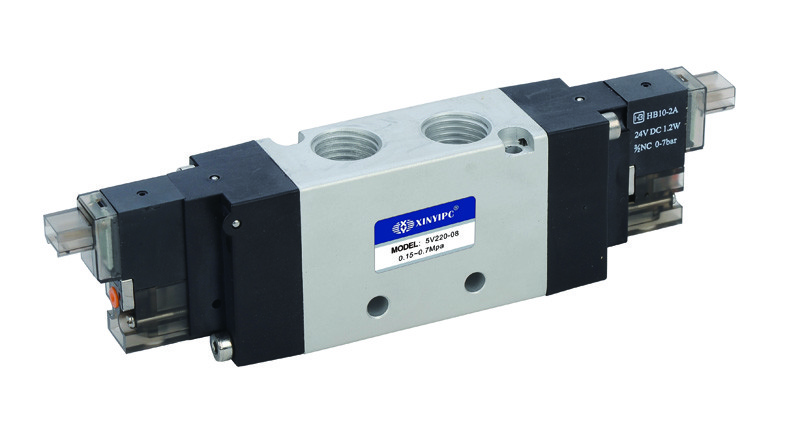

Mini Double Coil Pneumatic Solenoid Valve 3 / 2 Way 5V120 ~ 5V220 Standard
Specifiction
Model | MP-08 |
Medium | air/oxygen/rare gases |
Pressure IN-port1.2-OUT1.2 | Min:0.001Mpa |
Service pressure range | 0~0.35Mpa |
Max operating pressure | 0.4Mpa |
Effective cross-sectional arer | 16mm2 |
Cv value | 0.89 |
Ambient temperature | (-5~60c°) |
Operating fluid temperature | (-5~50c°) |
Allowable inside lerkage | pressure=0.2Mpa ≤0.1/min |
Allowable outside lerkage | pressure=0.2Mpa ≤0.1/min |
Mounting posture | According to our design |
Response time | ON=≤0.1MS OFF=≥0.1MS |
Noise level | |
Life cycles | ≥10 million times |
Allowable voltage fluctuation | DC12V DC24V |
Range of allowable voltage | ±15% |
Power consumption | 1W |
Class of Insulation | F class |
Protective struchure | IP65/IEC/DIN40050 |
Piping thread | G1/4" |
Lead wire length | produce as requested |
Dimensions Mounting | 71.3mm*42mm*64.3mm(h) |
Material | aluminium alloy brass |
Net Weight | 0.4kg/pcs |
