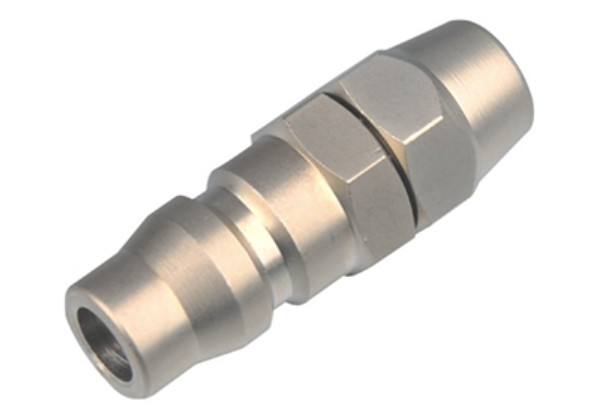

45 # steel material PP Metal Coupler Male Type , Quick Coupling
European type quick coupler male female thread socket,hose barb socket,fast compression type socket,male female thread plug,hose barb plug,fast compression type plug,tube size I.D 6mm,8mm,10mm,thread size 1/4”,3/8”,1/2” e.g USH-20
Quick Detail:
* European type pneumatic quick coupler
* Body material brass,stainless steel,steel,aluminum available
* Working pressure 0-1.0MPa
* One-hand operated,convenient and rapid connecting
* Wide tempreature range -20~100℃
* Unbaffled design poppet,stable and reliable
* Various model for flexible connecting
* Male female thread socket,hose barb socket,fast compression with spring type socket
* With spring for tube protection selectable
* Tube size I.D 6mm,8mm,10mm
* Thread size 1/4”,3/8”.1/2”
* Compact design,samll volume,long service life
Applications:
Quick coupler used widely in metallurgy,oil industrial, chemical,textile,aviation,mechanical automation, transporation, electronics, medicine equipment,teching equipment as airline connector
Quick coupler use especially in air tool area to connect the pipeline.
Specifications:
1, working Medium:Compressed air
2, Body material: Brass,stainless steel,steel,aluminum
3, Maximum working pressure:35bar
4, Working temperature: -20~100℃
5, Seal Material:NBR
Fluid Type | Air, Vacuum |
Operating Pressure | 0~10.2kgf/cm2(0~1.0MPa) |
Negative Pressure | -750mmHg(10Torr) |
Max. Pressure | 15.3kgf/cm2(1.5MPa) |
Operating Temperature Range | 0~60℃ |
Tube Material |
Nylon and Polyurethane |
Tube Outer DIA
Metric Size | Inch Size | |||||||||||
Code | 4 | 6 | 8 | 10 | 12 | 16 | 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 |
Dia. | Φ4 | Φ6 | Φ8 | Φ10 | Φ12 | Φ16 | Φ5/32 | Φ3/16 | Φ1/4 | Φ5/16 | Φ3/8 | Φ1/2 |
Thread Type & Size
Code | M5 | M6 | M8 | M10 | M12 | M12A | M14 | M16 | M20 |
Dia. | 4mm | 6mm | 8mm | 10mm | 12mm | 14mm | 16mm | 1/8inch | 5/32inch |
55º Taper Pipe Thread (PT) | G - Thread | |||||||||
Code | 1 | 2 | 3 | 4 | 6 | G01 | G02 | G03 | G04 | G06 |
Dia. | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 |
UNF | NPT1/8 | |||||
Code | U10 | N01 | N02 | N03 | N04 | N06 |
Size | 10-32UNF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/4 |
