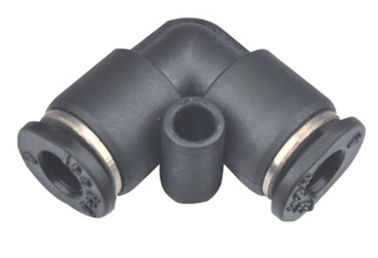

PUL - C Micro Size Equal Elbow push - in Plastic Tube Fitting Gray Colour
One touch quick push-in fitting straight,elbow,tee,branch tee,plug,splicer,triple,banjo,reduction type,flow regulating type,swivel type,stop type,check type,bulkhead type,tube size 4mm~16mm,inch size 5/32”~1/2”,thread 1/8”~1/2” PT,G,NPT,Metric thread,brass nickle plated body material e.g PC8-G02
* One touch quick push-in fitting
* Body material brass nickle plated
* Housing material PBT,white colour and black colour selectable
* Lock claw material stainless steel,tight and stable
* Round and oval sleeve for option,colour in black and blue selectable
* Fast installation,easy and flexible connecting,saving space
* Diversfied model satisfy any need of piping work
* PTFE leak proof coated on thread to ensure good sealing peformance
* Threads available in G,PT,NPT,METRIC
* Tube size available metric 4,6,8,10,12,16 inch 5/32,3/16,1/4,5/16,3/8,1/2
* Ttraight,tee,branch tee,run tee,elbow,universal elbow(Banjo),plug,splicer,reduction,flow regulator,swivel type,triple type,thread extended type,bulkhead type,check type,stop type
Super Mini One-Touch tube fittings are used in pnematics piping.
The tube fittings come in wide varirty of models to meet all your needs in pneumatics piping.
Even after installation,in direction of the tube can be changed freely.
Nickel-plated metal body ensures Anti-Corrosion and Anti-Contarmination.
All R and NPT threads are Pre-Costed sealant.
All cyilndrical threads are standard with O-Ring seals
The size is 40% smaller than the standard fitting
Oval plastic ring easier to operate the tube insert and pull out
|Fluid Type||Air, Vacuum|
|Operating Temperature Range||0~60℃|
Nylon and Polyurethane
Tube Outer DIA
|Metric Size||Inch Size|
Thread Type & Size
|55º Taper Pipe Thread (PT)||G - Thread|
