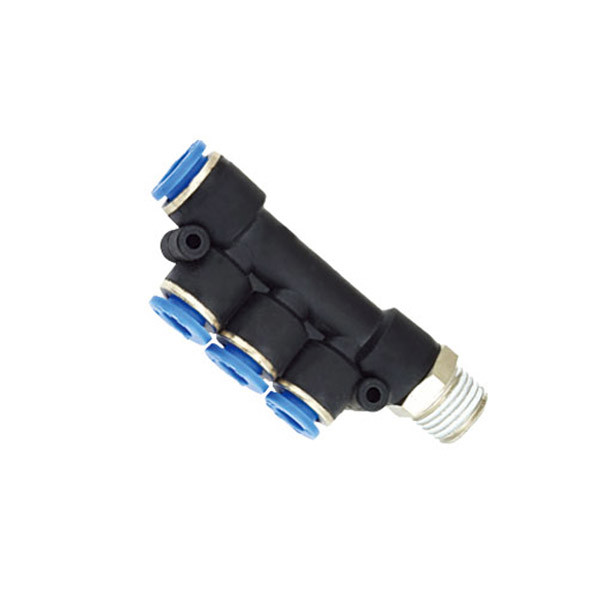

PKB Five Way male R thread connector Equal Tee Pneumatic Tube Fitting
One touch quick push-in fitting straight,elbow,tee,branch tee,plug,splicer,triple,banjo,reduction type,flow regulating type,swivel type,stop type,check type,bulkhead type,tube size 4mm~16mm,inch size 5/32”~1/2”,thread 1/8”~1/2” PT,G,NPT,Metric thread,brass nickle plated body material e.g PC8-G02
Quick Detail:
* One touch quick push-in fitting
* Body material brass nickle plated
* Housing material PBT,white colour and black colour selectable
* Lock claw material stainless steel,tight and stable
* Round and oval sleeve for option,colour in black and blue selectable
* Fast installation,easy and flexible connecting,saving space
* Diversfied model satisfy any need of piping work
* PTFE leak proof coated on thread to ensure good sealing peformance
* Threads available in G,PT,NPT,METRIC
* Tube size available metric 4,6,8,10,12,16 inch 5/32,3/16,1/4,5/16,3/8,1/2
* Ttraight,tee,branch tee,run tee,elbow,universal elbow(Banjo),plug,splicer,reduction,flow regulator,swivel type,triple type,thread extended type,bulkhead type,check type,stop type
Product Features
One-Touch tube fittings are used in pnematics piping.
The tube fittings come in wide varirty of models to meet all your needs in pneumatics piping.
Even after installation,in direction of the tube can be changed freely.
Nickel-plated metal body ensures Anti-Corrosion and Anti-Contarmination.
All R and NPT threads are Pre-Costed sealant.
All cyilndrical threads are standard with O-Ring seals
Fluid Type | Air, Vacuum |
Operating Pressure | 0~10.2kgf/cm2(0~1.0MPa) |
Negative Pressure | -750mmHg(10Torr) |
Max. Pressure | 15.3kgf/cm2(1.5MPa) |
Operating Temperature Range | 0~60℃ |
Tube Material |
Nylon and Polyurethane |
Tube Outer DIA
Metric Size | Inch Size | |||||||||||
Code | 4 | 6 | 8 | 10 | 12 | 16 | 5/32 | 3/16 | 1/4 | 5/16 | 3/8 | 1/2 |
Dia. | Φ4 | Φ6 | Φ8 | Φ10 | Φ12 | Φ16 | Φ5/32 | Φ3/16 | Φ1/4 | Φ5/16 | Φ3/8 | Φ1/2 |
Thread Type & Size
Code | M5 | M6 | M8 | M10 | M12 | M12A | M14 | M16 | M20 |
Dia. | 4mm | 6mm | 8mm | 10mm | 12mm | 14mm | 16mm | 1/8inch | 5/32inch |
55º Taper Pipe Thread (PT) | G - Thread | |||||||||
Code | 1 | 2 | 3 | 4 | 6 | G01 | G02 | G03 | G04 | G06 |
Dia. | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 | R1/8 | R1/4 | R3/8 | R1/2 | R3/4 |
UNF | NPT1/8 | |||||
Code | U10 | N01 | N02 | N03 | N04 | N06 |
Size | 10-32UNF | NPT1/8 | NPT1/4 | NPT3/8 | NPT1/2 | NPT3/4 |
